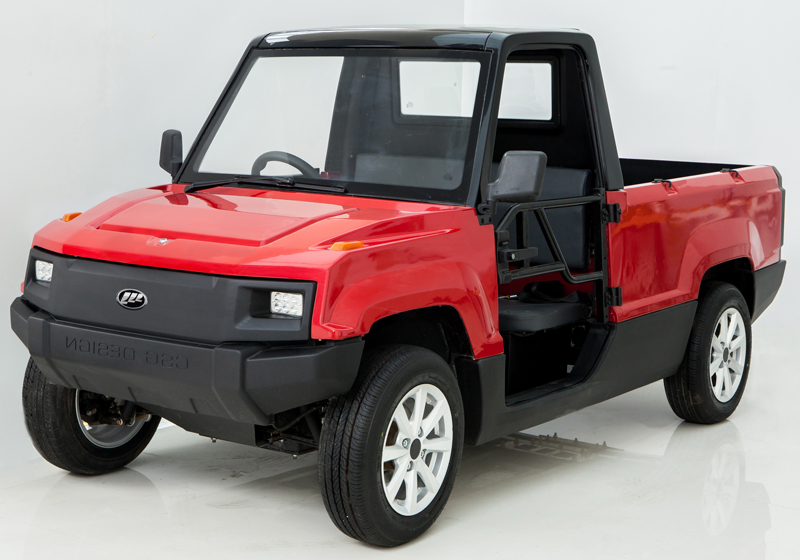

C3 SHOW

C3 Basic parameter
Rated passengers 2
L×W×H(mm) 3245*1320*1460
C3 Performance parameter
Driving range 120km
Rated load volume 300kg
Maximum speed 45km/h
Maximum gradeability ≥20%
Minimum ground clearance 150mm
Approach angle 55°
Departure angle 33°
C3 Bodywork parameter
Front suspension Horizontal plate spring independent suspension
Rear suspension Horizontal plate spring with sway bar independent suspension
Drive mode Rear wheel drive
Tire specification 165/60R14
Quality warranty period for the finished car 2 years
C3 Battery parameter
Motor controlling type Interchange permanent magnet asynchronization intelligent controller
Battery Maintenance-free plumbic acid
Rated power 4kw
Battery volume 72V100AH
Charge time 6h-8h
Quality warranty period for the battery 1 year
C3 Configuration
Instrument type LCD
Headlamp type LED
Rear lamps type LED
Wiper
Button start
A/C
Air fan
Integrated remote key
Front/rear power windows ○/○
Remote lock
Internal release of charging connector cover
Touch screen
Speakers
