| Main Parameters | ||||
| Category: | SUV 2.0L | SUV 1.5T | ||
| Overall dimension of complete vehicle: L x W x H (mm) | 4720*1840*1665 | |||
| Max. speed (km/h) | 180 | |||
| Fuel consumption under combined operating conditions (L/100km) | 7.8 | - | 8.2 | |
| Max. driving range (km): | - | |||
| Wheelbase (mm): | 2780 | |||
| Front/rear tread (mm): | 1540/1535 | |||
| Front/rear suspension (mm): | 950/990 | |||
| Complete vehicle curb mass (kg): | 1540 | - | 1560 | 1630 |
| Max. total mass (kg): | 2100 | |||
| Number of doors (number of doors to be accessed for passengers): | 4 | |||

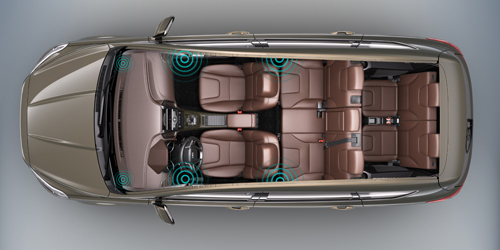

| Number of seats: | 6 Seats、7 Seats | |||
| Fuel tank capacity (L): | 60 | |||
| Fuel grade (GB17930-1999): | 93# premium unleaded gasoline | |||
| Min. ground clearance (mm): | 150 | |||
| Min. turning diameter (m): | 10.8 | |||
| Approach angle/departure angle (°): | 19/23(°) | |||
| Max. climbing capacity (%) | ≥30 | |||
| Engine/transmission Parameter | ||||

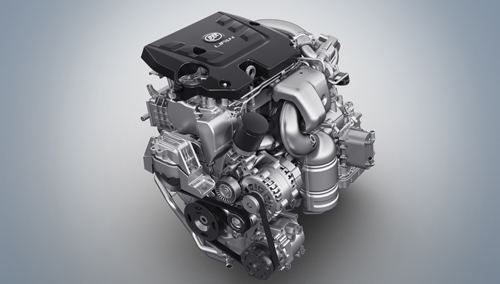

| Engine model: | LF483Q | LF477ZLQ | ||
| Displacement (L): | 1.988 | 1.452 | ||
| Type: | DOHC inline 4-cylinder 16-valve | |||
| Valve structure: | Overhead camshaft | |||
| Engine-specific technologies: | Variable valve timing system (VVT) | Direct injection + Turbocharger (GDI) | ||
| Engine capacity compression ratio: | - | |||
| Rated power/speed【kW/(r/min)】 | 104/6000 | 104/4850 | ||
| Max. torque [N·m/(r/min)] | 185/4200-4400 | 234/1750-3500 | ||
| Engine oil supply method | Multi-point EFI | |||
| Electronic fuel injection system: | :1 | |||
| Material of cylinder cover | Aluminium alloy | |||
| Material of cylinder block | Cast iron | |||
| Emission standard: | National V | |||
| Transmission type: | 5MT | CVT | 5MT | 8AT |
| Chassis/brake Parameter | ||||
| Drive mode: | Front-arrangement front-drive | |||
| Drive type: | 4×2 | |||
| Front overhanging type: | Macpherson independent overhanging | |||
| Rear overhanging type: | Torsion beam type non-independent suspension | |||
| Steering system: | Mechanical hydraulic power system (HPS) | |||
| Chassis structure | Integral body construction | |||

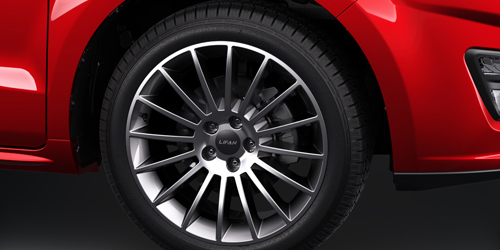

| Front/rear tire specification: | 215/55 R17 | 225/45 R18 | ||
| Spare tire specification | T135/90 R16 | |||
| Front brake type: | Disc-type | |||
| Rear brake type: | Disc-type | |||
| Throttle arrangement: | Electronic accelerator pedal | |||
| Parking brake type: | Hand brake | Foot brake, electronic parking | Hand brake | Foot brake, electronic parking |
