Security & Safety

Lifan530 is a recreational family sedan developed by Lifan Motors. Its higher trafficability, matched with 1.3 VVT and 1.5VVT power system will meet all your driving demand.

Unique security configurations among its peers (optional): four-wheel disc brakes, ESP (including TCS+BAS+BOS), tire pressure monitoring, 6 airbags
Four-wheel disc brakes:
LIFAN 530 has its four wheels controlled by disc brakes, which feature better heat dissipation, smaller thermal attenuation and more excellent braking effect than drum brakes.
BAS:
This system can automatically identify the foot pedal force in time of braking, and (in case of emergency, if the driver slams on the brake) this system will automatically increase its braking force, shorten the braking distance and time and enhance the braking power to ensure the braking reliability and safety. At present, this system is classified as a braking system advanced in the world and also used in LIFAN cars for the first time.
BOS:
LIFAN 530 adopts the Bosch brake override system, if the oil can not be cut off when the accelerator is stepped on by mistake or fails in case of emergency, this system will automatically reduce the torque output of the engine and take precedence to respond to the braking system to avoid accidents and ensure the vehicle and personnel safety.
TCS traction control system + ESP vehicle electronic stability program (optional):
The traction control system plus vehicle electronic stability program can prevent the vehicle from slipping, side slipping and drifting in case of emergency.In the field of car technology, Bosch boasts the originator of the ESP, so the Bosch ESP9.0 LIFAN 530 uses should be the world leading technology, which can effectively ensure the safety.
The tire pressure monitoring system can achieve full-time safety monitoring:
The pressure of the four wheels can be monitored at any time to maintain the normal and safe pressure, so that LIFAN 530 could achieve less fuel consumption, more safety and comfort.
Airbags:
LIFAN 530 is equipped with 6 airbags, which allows the vehicle to offer passengers more comprehensive protection. The copilot seat adopts a seamless airbag and the instrument panel uses advanced laser weakening technology, which has eliminated the gap between the traditional airbag and the instrument panel, so it looks more beautiful. The instrument panel uses a laser weakening technology, so the airbag operations can be accurately controlled, with the safety performance greatly enhanced.

Excellent security configuration among its peers: Bosch latest version of ABS, EBD, CAN-BUS system, 42% high-strength body steel plate
Bosch's latest 9.0ABS+EBD:
It adopts the latest version (9.0) of advanced braking electronic control system provided by Bosch Company. Moreover, the system is the latest version of Bosch and also the ABS+EBD currently most advanced throughout China.LIFAN 530 boasts shorter braking distance and more accurate braking.
CAN-BUS system:
Along with the rapid increase of electrical parts, the traditional one-line-for-one-signal data line has already been out of fashion. Relative to optical fiber cables, the CAN network control can receive more information and suffer from smaller loss.
42% high-strength body steel plate:
The complete vehicle body made from more than 42% high-strength steel plate is expected to reach the 5-star collision standard.The safety body, the body able to absorb collision energy and the high-strength cab independently researched and developed by LIFAN can effectively absorb the collision energy in time of any collision and disperse the energy to the various parts of the body frame to minimize the cab deformation and ensure the occupants' safety.

Stable Driving

1.Accurate chassis adjustment
The Mcpherson independent front suspension and composite trailing arm semi-independent rear suspensions are carefully adjusted to adapt to various road conditions and have you enjoy comfortable driving. It is one of the front independent suspensions currently most popular, featuring a compact structure, less space occupation and more light weight, which can facilitate lightweight design of the complete vehicle, have the car controllability brought into full play through optimization of the wheel alignment and achieve a strong ability to adapt to the road conditions. The rear suspension is widely used on European cars, there is a large space between the left and right wheels, and the body camber is not easy to change, able to achieve smaller friction and more comfortable riding. LIFAN 530 adopts a more brand-new design and an optimized and adjusted suspension position, so that the rear floor is perfectly leveled to achieve more satisfactory comfort.
2.New CVT transmission
LIFAN 530CVT gearbox adopts imported Bosch steel belt for transmission to provide unlimited variability between the highest and lowest speed gears subject to no discontinuous steps or gear shifts. This has realized stepless variation of the speed ratio in a relatively wide range, so that the engine could be kept at its best working condition for a long time.
3. Electric power, precise control
The electric power steering system advanced among its peers is adopted to offer easier and more accurate steering subject to lower fuel consumption. Smaller rotary diameter among its peers can offer good mobility and easier manipulation to facilitate garage parking and turning.

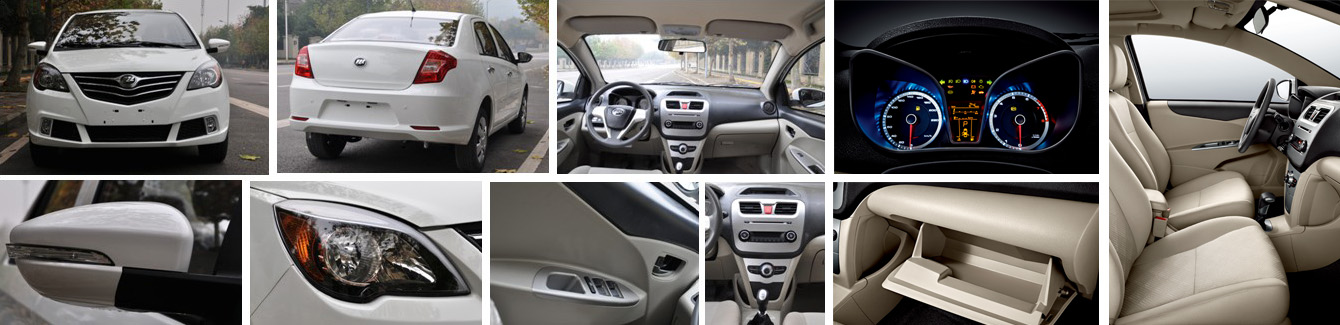

Humanized Technique

Long wheelbase + perfect flat rear floor design
1. It boasts the longest wheelbase among its peers to effectively provide the maximum driving and riding space.
2. The concept of front-row driver-oriented design offers enough space for driving and riding to achieve free operation.
3. The most perfectly flattened floor, the spacing of 905mm between the front and rear rows, as well as the newly-designed front backrest frame can offer the most convenient and comfortable riding of the rear passengers, and more spacious leg accommodation, so that the riding comfortability has been greatly improved.
LIFAN 530 boasts the maximum ground clearance of 172 among its peers, which can offer good trafficability and adapt to various road conditions.
LIFAN 530 boasts the minimum turning radius of 4.8 meters among its peers, which can offer better turning performance and adapt to more complex road conditions.
6:4 multifunctional folding rear seats
1. The rear seats can be folded according to the proportion of 6:4, able to accommodate some long or large luggage according to requirement.
1.6-way encapsulated seat
1. The novel six-way high backrest seat more accords with ergonomic principle to have you free of fatigue during long-distance travel.
Hi-Fi audio system
1. The high-quality sound assembly system can have you absorbed in a music hall anywhere in the car enjoying the true, perfect tone quality and superexcellent experience.The AUX+USB multi-media mix can fully meet the DIY music preferences and needs of LIFAN 530 young owners.
Multifunctional folding remote control key
1. The folding key features good touch, noble appearance and sufficient upscaleness.
2. The doors can be opened and closed with the trunk able to be opened in a remote manner, which can offer you more satisfactory convenience; when the car is locked with any door open, the alarm will automatically sound to remind you.
3. The electronic immobilizer system can give off a shrill alarm in case of illegal entry.
Electric heating rearview mirrors
1. The foldable design can effectively protect the mirror surface against damages and the mirror can be folded to prevent scratches.
2. The electric adjustment can offer convenient operation and improve the safety and convenience for adjustment during driving or rainy days.
3. The rearview mirrors with the function of heating can remove mist by heating in rainy or foggy days and keep the mirror surface clean to ensure a good line of sight.
Excellent NVH performance
1. Considerate major improvement has been made on the body frame structure, engine suspension technology, sound insulation technology and engine heat pipe system, so that the vehicle interior noise could be reduced by 2-3dB subject to control from the noise source, transmission path and structural response.
2. Engine: The engine working conditions are simulated by multi-body dynamics to control the engine NVH performance and reduce the later failures of the complete vehicle NVH performances.
3. Cabin: The upper instrument, four inner door panels, roof, rear rack and analysis point are provided with sound-absorbing cotton and sealing sponge respectively.
4. Floor: The front floor and relief hole are provided with a damping plate and a sealing cover respectively.
5. Body front part: The front insulation pad uses an EVA+PU high-performance soundproof material and all front parts are coated with double-layer sealing rubber sleeves when passing through holes.
6. Body side: The left and right side cavities have sealing expansion rubber applied at the sections of pillars A, B and C to block side space flow.
7. Air intake and exhaust: The air intake system adopts a resonant cavity and 1/4 wavelength pipe. The exhaust system adopts a double muffler system.

Parameter of Lifan 530

Vehicle model	LF7133/LF7133B	LF7153/LF7153E	LF7153C/LF7153F
Production model	LF7133/LF7133B	LF7153/LF7153E	LF7153C/LF7153F
Powertrain	1.3L+5MT	1.5L+5MT	1.5L+CVT

Dimension parameter
L×W×H (mm)	4700×1765×1490
Wheelbase (mm)	2550
Tread (front/rear) (mm)	1465/1460
Min. Turning radius (m)	9.6
Min. Ground clearance（Empty load mm）	172(载no load)
Front/rear suspension（mm）	810/940
Curb mass(kg)	1140	1140	1165
Cross weight(kg)	1515	1515	1540
Trunk volume(L)	475
Power train system
Engine	LF479Q3-B	LF479Q2-B
Displacement (L)	1.3L VVT	1.5 VVT
Max.power [kw/(r/min)]	69KW/6000rpm	76KW/6000rpm	76KW/6000rpm
Max.torque[N.m/(r/min)]	119N.m/4000rpm	133N.m/3500-4500rpm	133N.m/3500-4500rpm
Max.speed（km）	170	175	160
100 km fuel consumption (L)	6.4	6.4	/
Oil tank volume (L)	42L
emissions standards	Euro IV/Euro V	Euro IV/Euro V	Euro IV/Euro V
Chassis system
Transmission	5MT	5MT	CVT
Steering gear type	Electric power steering / hydraulic steering
Front overhanging	McPherson independent suspension
Rear overhanging	Composite semi-trailing arm independent suspension
Brake type(front/rear)	Front disc rear drum	Front disc rear disc
Tyre size	185/60 R15

LIFAN 530 Configuration
Configuration	LXStandard	Optional	remark
Electric power steering	●
Immobilizer	—	○
Power sunroof	—	○
Steel wheel rim + Decorative Cover	●		One-out-two
Aluminum alloy wheel hub	—	○	One-out-two
Driver and front passenger airbags	●
Front side airbags+ side air curtains	—	○
Reversing radar	—	○
Front and rear mudflaps	—	○
Rear fog lamps	●		One-out-two
Daytime running lights	—	○	One-out-two
Exterior rearview mirror with heating function	—	○
Driver and front passenger seats with heating functioni	—	○
ABS+EBD	●		One-out-two
ESP+TCS	—	○	One-out-two
Tire Pressure Monitor System (TPMS)	—	○
Brake Assist System (BAS)	●
Cloth seat	●
Driver 4-way seat with manual adjustment	●		One-out-two
Driver 6-way seat with automatic adjustment	—	○	One-out-two
Front passnger 4-way seat with manual adjustment	●
Radio + CD + USB interface	●
4 speakers	●
Front power windows	●
Rear power windows	●
Electric air conditioner	●
